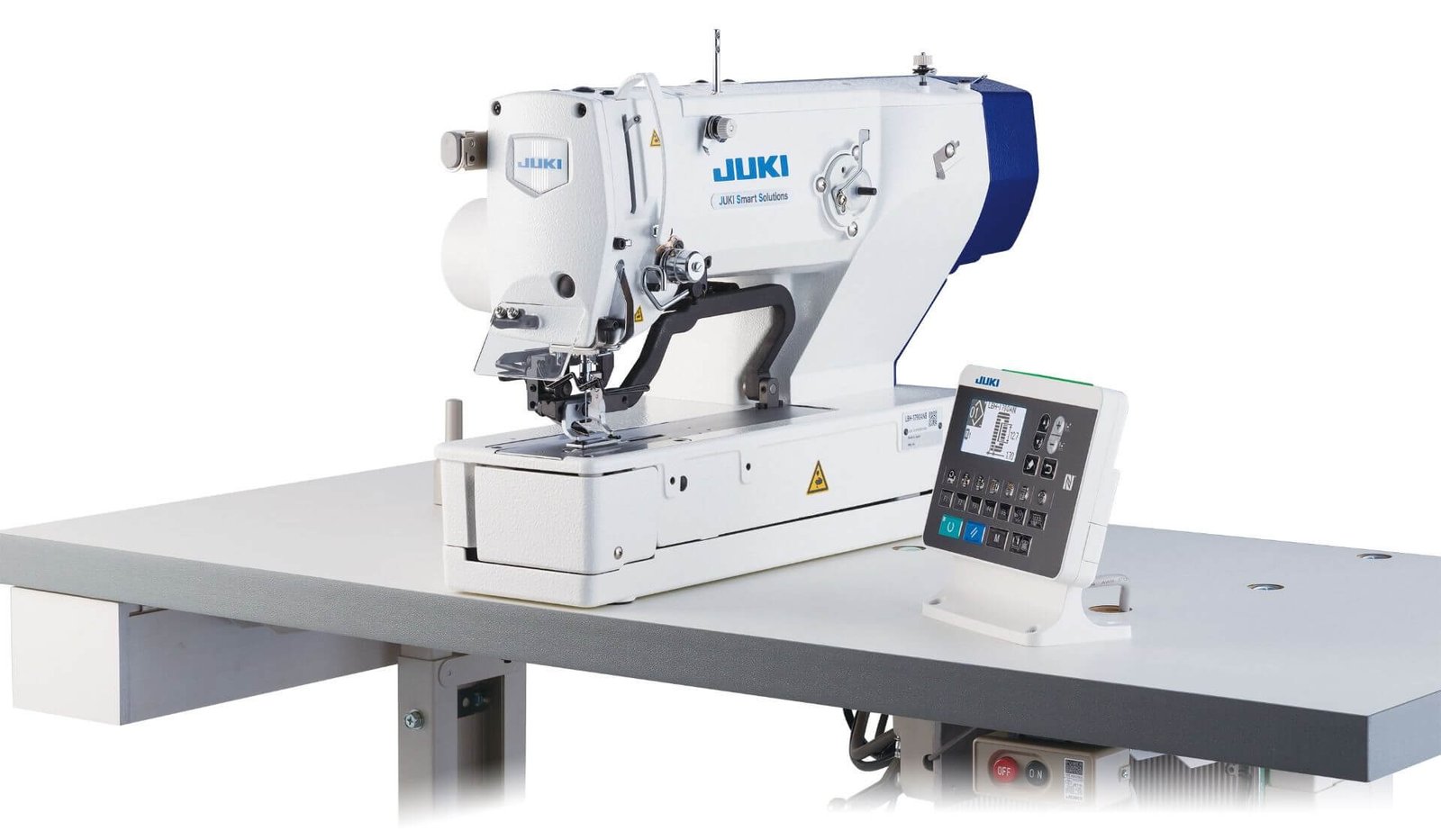

The LBH-1790AN Series follows the world’s highest sewing speed and dry-head mechanism of its predecessor model. In addition, this machine comes with the latest model operation panel which is installed with a USB port. Furthermore, all drive mechanisms have been digitalized to manage each sewing pattern individually.
The LBH-1790AN Series follows the world’s highest sewing speed and dry-head mechanism of its predecessor model. In addition, this machine comes with the latest model operation panel which is installed with a USB port. Furthermore, all drive mechanisms have been digitalized to manage each sewing pattern individually. The maximum sewing speed is 4,200sti/min, and the jump speed is 200mm/s. The cycle time has been further reduced for continuous sewing.
| Model | LBH-1796AN |
| Buttonhole Length | Max. 220mm |
| Needle | DPx5(#11J)#11J-#14J |
| Brand | Juki |
| Sewing speed | Max. 4,200sti/min, Normal 3,600sti/min When the non-lubricated hook (optional) is used 3,300sti/min |
| Size of cloth cutting knife | 6.4-25.4mm |
| Bartacking width | Max. 5.0mm |
| Lift of the work clamp | Parallel lifting 6mm |
| Number of standard patterns | 31 patterns |
| Number of patterns that can be input | Max. 99 patterns |
| Machine head drive system | Compact AC servomotor (direct-drive system) |
